CM TRUCK BED MODELS

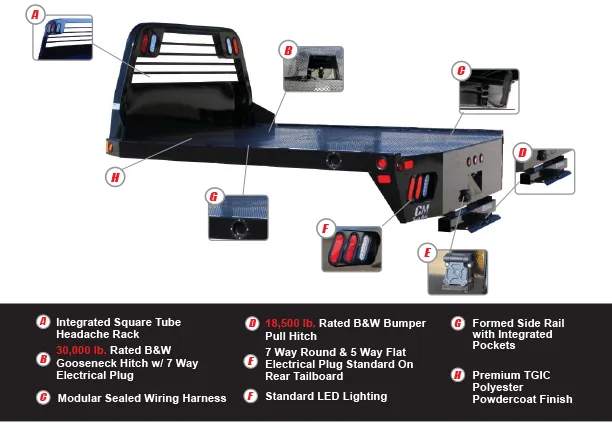

SS Model
|
Integrated Square Tube Headache Rack |
Premium TGIC Polyester Powdercoat Finish |
|
18,500 Lb. Rated B&W Bumper Pull Hitch |
3” Steel Roll-Formed 3/16” Channel Crossmembers |
|
Formed Side Rail With Integrated Pockets |
DOT Required LED Marker Lighting |
|
4” Steel Channel Frame Rails |
Tapered Rear Corners for Maximized Turning Radius |
|
1/8” Steel Tread Plate Deck |
Modular Sealed Wiring Harness |
|
Solid Rear Skirt |
Standard LED Lighting |
|
30,000 lb. Rated B&W Gooseneck Hitch w/ 7 Way Electrical Plug |
All Steel Frame ConstructionSteel Tubing Headache Rack |
|
7 Way Round & 5 Way Flat Electrical Plug Standard on Rear Tailboard |
Angled Fuel Fill |

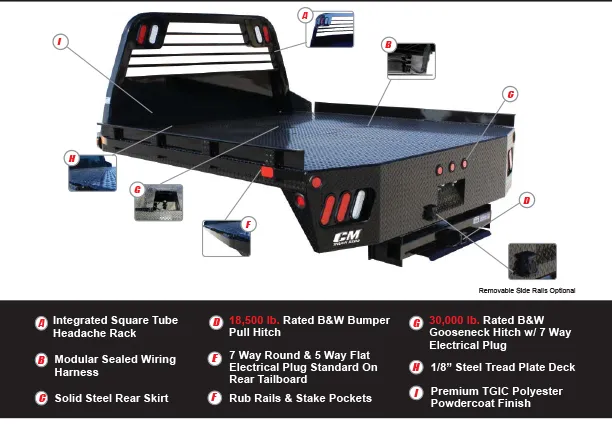

RD Model
| Integrated Square Tube Headache Rack | 3” Steel Roll-Formed 3/16” Channel Crossmembers |
| 18,500 lb. Rated B&W Bumper Pull Hitch | DOT Required LED Marker Lighting |
| Solid Steel Rear Skirt | Tapered Rear Corners for Maximized Turning Radius |
| 4” Steel Channel Frame Rails | Solid Steel Rear Skirt |
| 1/8” Steel Tread Plate Deck | 1/8” Steel Tread Plate Deck |
| Premium TGIC Polyester Powdercoat Finish | All Steel Frame Construction |
| 30,000 lb. Rated B&W Gooseneck Hitch w/ 7 Way Electrical Plug | Modular Sealed Wiring Harness |
| 7 Way Round & 5 Way Flat Electrical Plug Standard on Rear Tailboard | Angled Fuel Fill |
| Rub Rails & Stake Pockets | 3/8” Steel Tread Plate Sides with Rub Rail and Stake Pockets |

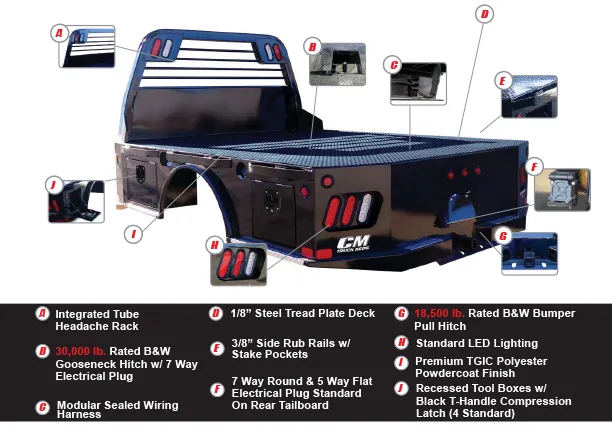

SK Model
| ntegrated Square Tube Headache Rack | Standard LED Lighting |
| 30,000 lb. Rated B&W Gooseneck Hitch w/ 7 Way Electrical Plug | Recessed Tool Boxes w/ Black T-Handle Compression Latch (4 Standard) |
| Modular Sealed Wiring Harness | All Steel Frame Construction |
| 4” Steel Channel Frame Rails | 4” Steel Channel Frame Rails |
| 1/8” Steel Tread Plate Deck | 3” Steel Roll-Formed 3/16” Channel Crossmembers |
| Premium TGIC Polyester Powdercoat Finish | Steel Tubing Headache Rack with Full Length Side Skirt With Rolled Fenders and Aluminum Tread Plate Trim |
| Tapered Rear Corners for Maximized Turning Radius | DOT Required LED Marker Lighting |
| 3/8” Side Rub Rails w/ Stake Pockets Electrical Plug | 4 – Lockable Flush-Mounted Tool Boxes with Black T-Handle Compression Latch, 2 Per Side |
| 7 Way Round & 5 Way Flat Electrical Plug Standard on Rear Tailboard | Angled Fuel Fill |
| 18,500 lb. Rated B&W Bumper Pull Hitch |

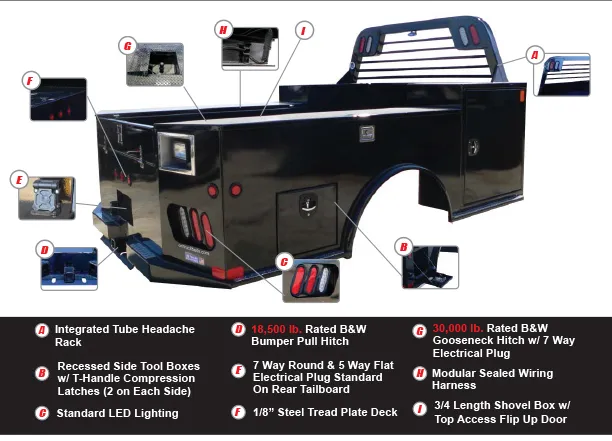

TM/TMX Model
| Integrated Square Tube Headache Rack | All Steel Frame Construction |
| Recessed Side Tool Boxes w/ T-Handle Compression Latches (2 on Each Side) | 4” Steel Channel Frame Rails |
| Standard LED Lighting | Rear Bumper with Aluminum Tread Plate Trim |
| 4” Steel Channel Frame Rails | 3” Steel Roll-Formed 3/16” Channel Crossmembers |
| 1/8” Steel Tread Plate Deck | Full Length Side Skirt with Rolled Fenders and Aluminum Tread Plate Trim |
| 18,500 lb. Rated B&W Bumper Pull Hitch | 6 – Lockable Tool Boxes, 3 on Each Side |
| 7 Way Round & 5 Way Flat Electrical Plug Standard on Rear Tailboard | Angled Fuel Fill” |
| (4) 18” Airline Track Tie Down Strips with 4 Tie Downs Included | DOT Required LED Marker Lighting |
| 1/8” Steel Tread Plate Deck | Full Length Rear Skirt |
| 30,000 lb. Rated B&W Gooseneck Hitch w/ 7 Way Electrical Plug | Tapered Rear Corners for Maximized Turning Radius |
| Modular Sealed Wiring Harness | Aluminum Treadplate Package |
| 3/4 Length Shovel Box w/Top Access Flip Up Door |

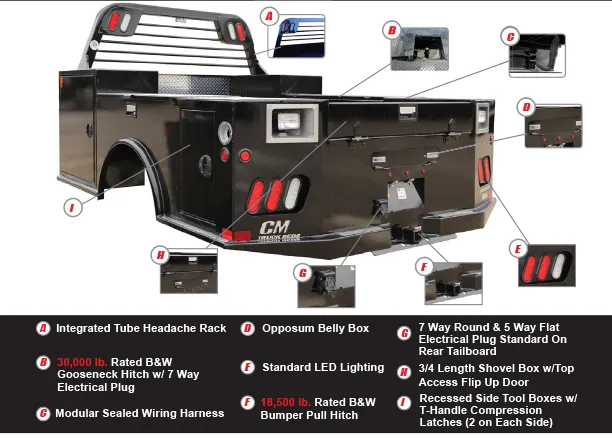

TM Deluxe Model
| Integrated Square Tube Headache Rack | Rear Bumper with Aluminum Tread Plate Trim |
| Recessed Side Tool Boxes w/ T-Handle Compression Latches (2 on Each Side) | Work Lights |
| Standard LED Lighting | Cast Aluminum Worklight Housing and Lights |
| 4” Steel Channel Frame Rails | 3” Steel Roll-Formed 3/16” Channel Crossmembers |
| 1/8” Steel Tread Plate Deck | Full Length Side Skirt With Rolled Fenders and Aluminum Tread Plate Trim |
| 18,500 lb. Rated B&W Bumper Pull Hitch | 6 – Lockable Tool Boxes, 3 on Each Side (11’4 Has An Additional 24” Box Forward Wheel on Each Side) |
| 7 Way Round & 5 Way Flat Electrical Plug Standard On Rear Tailboard | DOT Required LED Marker Lighting |
| (4) 18” Airline Track Tie Down Strips with 4 Tie Downs Included | Full Length Rear Skirt |
| Tall Rear Box | Tapered Rear Corners for Maximized Turning Radius |
| Opposum Belly Box | Aluminum Treadplate Package |
| 30,000 lb. Rated B&W Gooseneck Hitch w/ 7 Way Electrical Plug | Drop Down Rear Tailgate with Center Handle |
| Modular Sealed Wiring Harness | Angled Fuel Fill |
| 3/4 Length Shovel Box w/ Top Access Flip Up Door | 4” Steel Channel Frame Rails |
| All Steel Frame Construction |

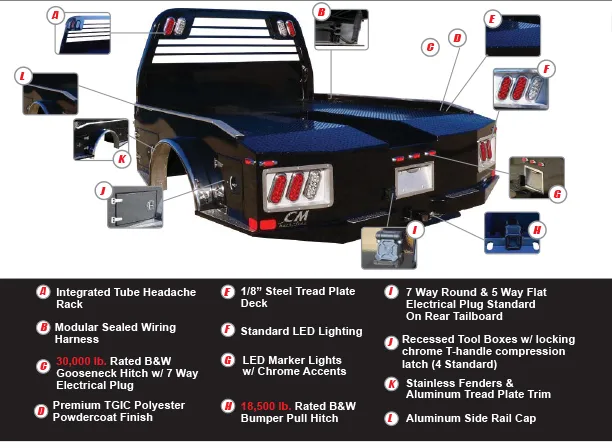

ER Model
| Integrated Square Tube Headache Rack | All Steel Frame Construction |
| Premium TGIC Polyester Powdercoat Finish | 4” Steel Channel Frame Rails |
| LED Marker Lights w/ Chrome Accents | Rear Dovetail |
| Recessed Tool Boxes W/ Locking Chrome T-Handle Compression Latch (4 Standard) | Full Length Side Skirt with Stainless Fenders and Aluminum Tread Plate Trim |
| 1/8” Steel Tread Plate Deck | Rear Bed Corners Tapered for Maximized Turning Radius |
| All Steel Frame Construction | 30,000 lb. Rated B&W Gooseneck Hitch w/ 7 Way Electrical Plug |
| Steel Tubing Headache Rack | Standard LED Lighting |
| Trough | 7 Way Round & 5 Way Flat Electrical Plug Standard On Rear Tailboard |
| Cast Aluminum Angled Fuel Fil | Aluminum Side Rail Cap |
| Modular Sealed Wiring Harness | Full Length Rear Skirt |
| 1/8” Steel Tread Plate Deck | 3” Steel Roll-Formed 3/16” Channel Crossmembers |
| 18,500 lb. Rated B&W Bumper Pull Hitch | (4) 18” Airline Track Tie Down Strips with 4 Tie Downs Included |
| Stainless Fenders & Aluminum Tread Plate Trim | DOT Required LED Marker Lighting |
| Aluminum Cast Insert for Rear Light and Tag |
GP Model
| Premium TGIC Polyester Powdercoat Finish | DOT Required LED Marker Lighting |
| Bumper Pull Receiver Hitch w/ Chain Loops | 1/8” Steel Straight Back |
| Recessed Tool Box w/ Black Compression Latch (2 Standard) | V-Groove Across the Back |
| 3” Steel roll-formed 3/16” channel crossmembers | Standard LED Lighting |
| Full Length Rear Skirt | 4” Steel Channel Frame Rails |
| 1.66” Pipe Around Bottom Rim of Sides and Back | Full Length Side Skirt with Rolled Fenders |
| Modular Sealed Wiring Harness | 34” Trough In Front w/ 3” Step Down |
| 7 Way Round 5 Way Flat Electrical Plug Standard on Rear Tailboard | 3 ½” V-Groove Across Back |
| All Steel Frame Construction | 1/8” Smooth Deck |

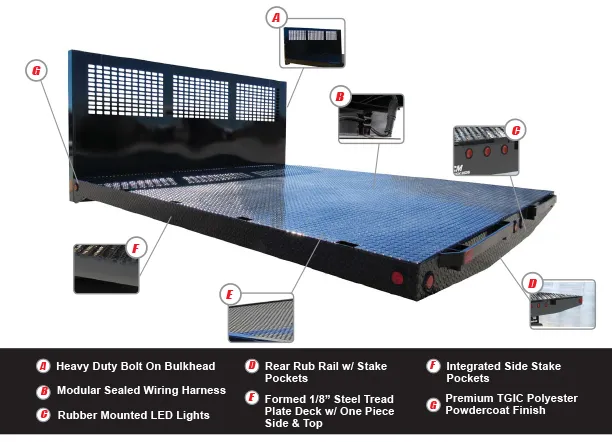

PL Model
| Heavy Duty Bolt on Bulkhead | Side Stake Pockets Integrated Into Deck |
| Rear Rub Rail w/ Stake Pockets | LED Clearance Lights |
| Premium TGIC Polyester Powdercoat Finish | Rubber Mounted LED Lights |
| 3” Steel Roll-Formed 3/16” Channel Crossmembers on 18” Centers | Integrated Side Stake Pockets |
| Formed 1/8” Steel Deck with One Piece Sides and Top Deck | 4” Structural Steel Channel Frame Rails |
| Tail, Stop, Turn and Reverse Lights Not Included | 1/8” Steel Tread Plate Deck |
| Modular Sealed Wiring Harness | Stake Pockets With 3” X 3/8” Rub Rail on Rear Only |
| Formed 1/8” Steel Tread Plate Deck w/ One Piece Side & Top | Bolt on Bulkhead (41” Off Deck) with Plasma Cut Easy View Window Grill (Ship Through Corners Standard) |
| All Steel Frame Construction |

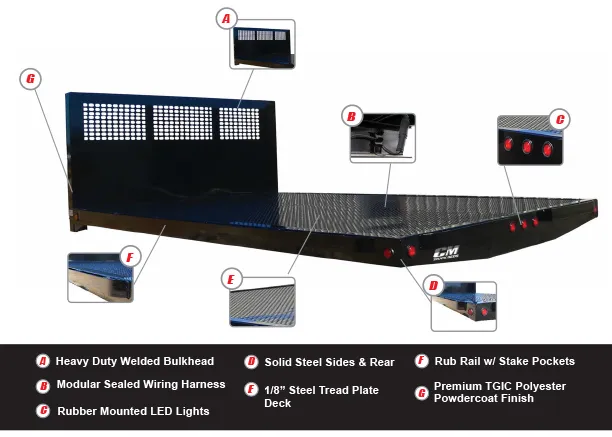

PL-SD Model
| Heavy Duty Welded Bulkhead | Stake Pockets with 3” X 3/8” Rub Rail |
| Solid Steel Sides & Rear | Rubber Mounted LED Lights |
| Premium TGIC Polyester Powdercoat Finish | Rub Rail w/ Stake Pockets |
| 3” Steel Roll-Formed 3/16” Channel Crossmembers on 18” Centers | 4” Structural Steel Channel Frame Rails |
| Formed 1/8” Steel Deck with One Piece Sides and Top Deck | 1/8” Steel Tread Plate Deck |
| LED Clearance Lights | Tail, Stop, Turn and Reverse Lights Not Included |
| Modular Sealed Wiring Harness | Welded Bulkhead (41” Off Deck) with Plasma Cut Easy View Window Grill |
| 1/8” Steel Tread Plate Deck | All Steel Frame Construction |

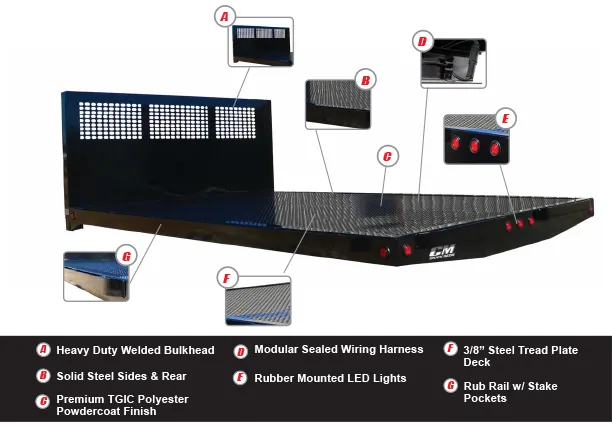

PL-HD Model
| Heavy Duty Welded Bulkhead | Welded bulkhead (41” off deck) |
| Solid Steel Sides & Rear | Stake Pockets on 24” Centers with 3” x 3/8” Rub Rail |
| Rub Rail w/ Stake Pockets | 3/8” Steel Tread Plate Deck |
| 4” Structural Steel Channel Crossmembers On 12” Centers | 8” Structural Steel Channel Frame Rails |
| Formed 3/16” Steel Sides And Rear | 3/16” Steel Tread Plate Deck |
| LED Clearance Lights | Tail, Stop, Turn and Reverse Lights Not Included |
| Modular Sealed Wiring Harness | All Steel Frame Construction |
| Rubber Mounted LED Lights |

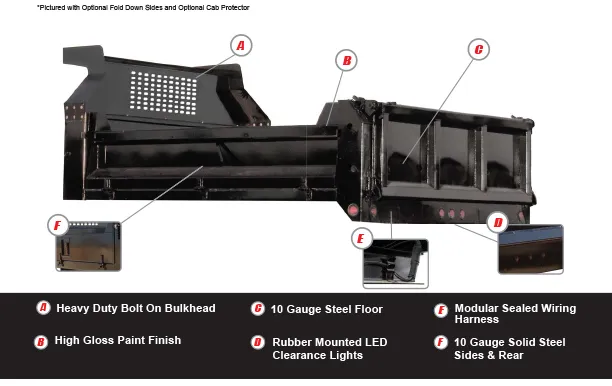

DB Model
| Heavy Duty Welded or Bolt On Bulkhead | 2 Piece 10 Gauge Deck (Full Seam Welded) |
| Rubber Mounted LED Clearance Lights | Formed 10 Gauge Rear Post |
| All Steel Frame Construction | 10 Gauge Steel Floor |
| 39” Tall Front Panel | 10 Gauge Solid Steel Sides & Rear |
| 10 Gauge Steel Floor with Cab Protector | 3” Steel Roll-Formed 3/16” Channel Crossmembers on 12” Centers |
| Premium TGIC Polyester Powdercoat Finish | Dot Required Led Marker Lights |
| Modular Sealed Wiring Harness | 18” Double Wall 10 Gauge Tailgate with Spreader Chains |
| 6” Steel Channel Frame Rails |

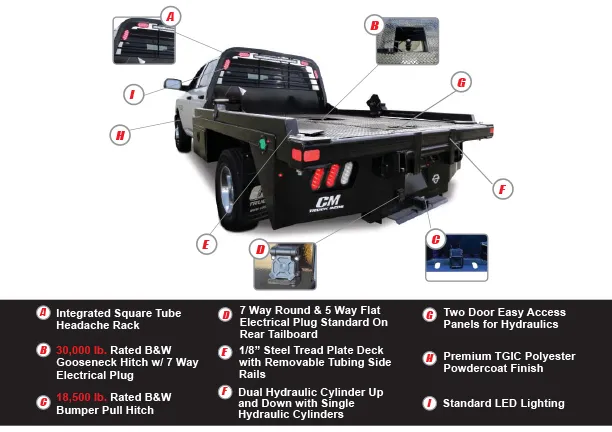

SZ Model
| Integrated Square Tube Headache Rack | Premium TGIC Polyester |
| 7 Way Round & 5 Way Flat Electrical Plug Standard On Rear Tailboard | Powdercoat Finish |
| Two Door Easy Access Panels for Hydraulics | 6” Steel Channel Frame Rails |
| All Steel Frame Construction | DOT Required LED Marker Lighting |
| 1/8” Steel Tread Plate Deck | 18,500 lb. Rated B&W Bumper Pull Hitch |
| 3/16” Smooth Rear Skirt | Dual Hydraulic Cylinder Up and Down with Single Hydraulic Cylinders |
| 30,000 lb. Rated B&W Gooseneck | Standard LED Lighting |
| Hitch w/ 7 Way Electrical Plug | 3” Steel Roll-Formed 3/16” Channel Crossmembers on 12” Centers |
| 1/8” Steel Tread Plate Deck with Removable Tubing Side Rails | Modular Sealed Wiring Harness |

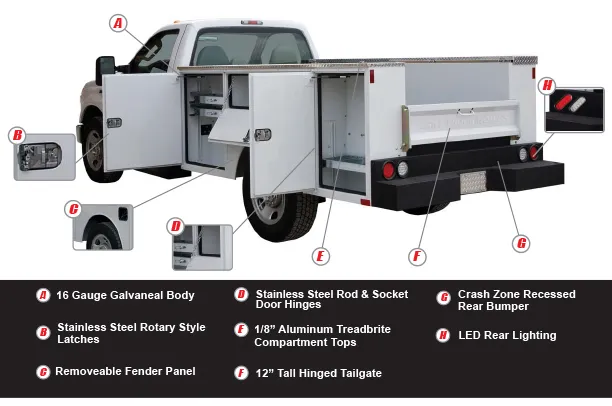

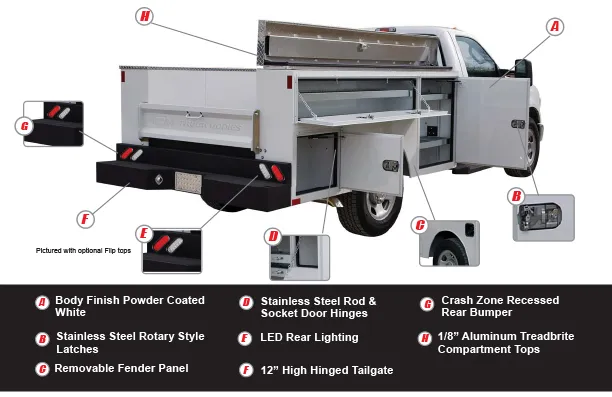

SB Model
| 16 Gauge Galvaneal Body | Removable Fender Panel |
| Stainless Steel Rod & Socket Door Hinges | 12” Tall Hinged Tailgate |
| Crash Zone Recessed Rear Bumper | Body-Finish Powder Coated White |
| Floor, Understructure, and Bumper Coated with Non-Slip Black Powder Coat | Recessed Rear Bumper |
| Treadbrite Aluminum Compartment Tops | Vise Socket in Bumper |
| Conduit in Understructure | Universal Body and Bumper Mounting Kit |
| Automotive D Bulb Weather Stripping | 16 Gauge (A60) Galvaneal Body |
| 11 Gauge Galvaneal Deck | Heavy Duty Rear Tailgate |
| Stainless Steel Rotary Style Latches | Paint |
| 1/8” Aluminum Treadbrite Compartment Tops | 100% Primer & Top Coat |
| LED Rear Lighting with Wiring Harness | Zinc Rich Primer is Used on All Surfaces for Unsurpassed Corrosion Protection |
| Gas Cylinder Style Door Holders | Individually Coated Components for Maximum Coverage |
| Automotive Stainless Steel Rotary Latches | Super Durable Powder Coat Provides Coating for Years of Protection |
| Bolted Body for Secure Attachment | Powder Coated Tool Box Interior |
| Multi Panel Doors with Internal Reinforcements | Black Lava, Non-Slip Coating on Deck Bumper and Under Carriage for Maximized Protection and Reduced Slip Hazard |
| Warranty | |
| 4 Year / 48,000 Mile Warranty | |
| 6 Year No Rust Guarantee |
SBA Model
| Body Finish Powder Coated White | Floor, Understructure, and Bumper Coated with Non-Slip Black Powder Coat |
| Stainless Steel Rod & Socket Door Hinges |
Treadbrite Aluminum Compartment Tops |
| Crash Zone Recessed Rear Bumper | Conduit In Understructure |
| Gas Cylinder Style Door Holders | Automotive D Bulb Weather Stripping |
| Automotive Stainless Steel Rotary Latches | 11 Gauge Galvaneal Deck |
| Bolted Body for Secure Attachment | Heavy Duty Rear Tailgate |
| Multi Panel Doors with Internal Reinforcements | Removable Fender Panel |
| Removable Fender Panel | 12” Tall Hinged Tailgate |
| Stainless Steel Rotary Style Latches | Paint |
| 1/8” Aluminum Treadbrite Compartment Tops | 100% Primer & Top Coat |
| LED Rear Lighting with Wiring Harness | Zinc Rich Primer is Used on All Surfaces for Unsurpassed Corrosion Protection |
| Recessed Rear Bumper | Individually Coated Components for Maximum Coverage |
| Vise Socket in Bumper | Super Durable Powder Coat Provides Coating for Years of Protection |
| Universal Body and Bumper Mounting Kit | Powder Coated Tool Box Interior |
| 16 Gauge (A60) Galvaneal Body | Black Lava, Non-Slip Coating on Deck Bumper and Under Carriage for Maximized Protection and Reduced Slip Hazard |
| Warranty | |
| 4 Year / 48,000 Mile Warranty | |
| 6 Year No Rust Guarantee |
PJ Truck Bed Models

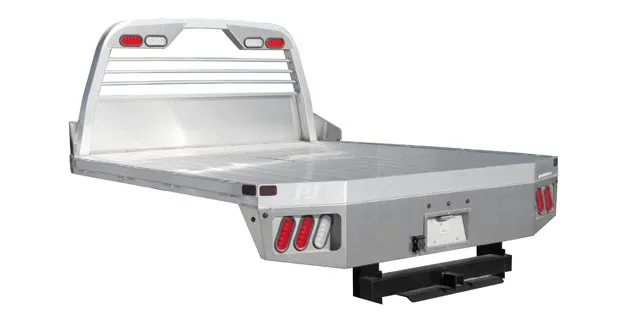

Standard Aluminum Truck Beds (ALGB)
|
Available Sizes
Design Features & Hardware
|
|

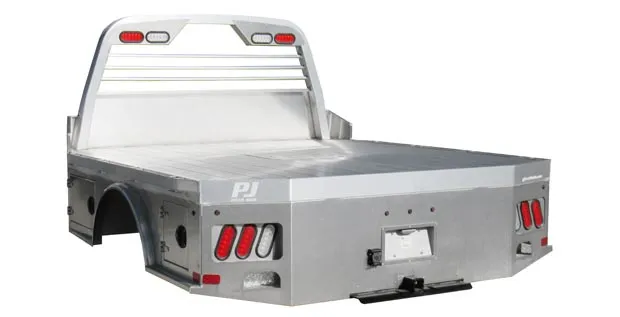

Standard Skirt Aluminum Truck Beds (ALGS)
Available Sizes
|
|
