2023 Kalmar ECG 100-12S

Kalmar’s electrically powered 20,000-40,000 lbs capacity forklift trucks will help improve the eco-efficiency of your operations while maintaining the highest levels of productivity and safety. With a choice of either Lead Acid or Lithium-ion batteries and different charging solutions, we can work with you to design a solution that will deliver for your business.

Features May Include:

Chassis

• Strong, durable and welded C-profile heavy-duty chassis
• Powerful front end unit for drive axle and lift mast fixations
• Solid tilt cylinder fixations in chassis and mast

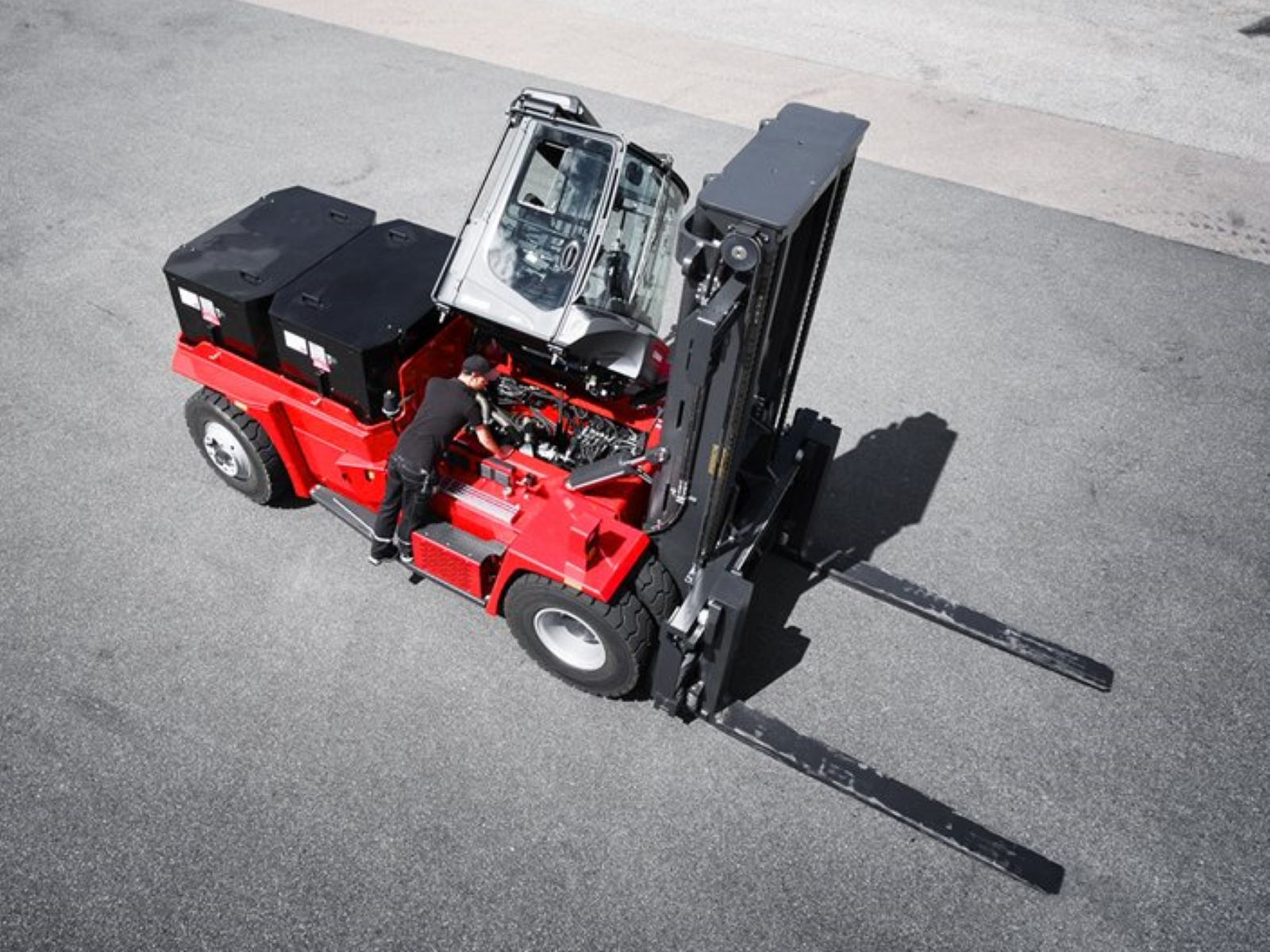

• Full access to the entire powertrain with tilting cabin
• Easy access to battery, TMS and power distribution
• Very good visibility in forward, up, sideways and rearwards
• Lifting eyes and anchor points (front & rear)
• Tow pin through rear counterweight (long handle)

Body

• Strong and protective steel fenders (front / rear)
• Long bottom running board between the fenders (anti-slip)
• Short access steps (2x) up to the cabin (anti-slip)
• Big rear view mirrors on front fenders (2x)
• Welded light brackets on front fenders (2x)
• Basic noise insulation kit
• Steer Axle (Rear)
• Kalmar steer axle mounted dual pivot bearings
• Steer axle with mechanical side stops
• Power steering with double acting cylinder
• Steer axle with narrow turning radius
• Steer links of “dog-bone type” (easy to change)
• Steer angle sensors for reduced speeds while turning

Drive Axle (Front)

• Kessler D81 dual-input drive axle with hub reductions
• Motor drive, steer angle sensors for electronic differential
• Maintenance-free oil-cooled Wet Disc Brakes (WDB)
• Dual parking brake, spring loaded & hydraulic release
• High pressure filter (10 μm) for the brakes

Powertrain

• Schabmüller electric asynchronous AC-motors (3-phase)
• Dual drive motors (2 x 49.6 hp) with electric fan cooling
• Dual pump motors (2 x 67 hp) with electric fan cooling
• Single brake pump motor (1 x 3.3 hp)
• Re-generative brakes system / energy back to battery
• Electric cooling fans for drive / pump motors & inverters
• Electric motors are protected inside the chassis
