2023 Blue Giant BGS-30-104

2023 Blue Giant  BGS-30-104

BGS-30

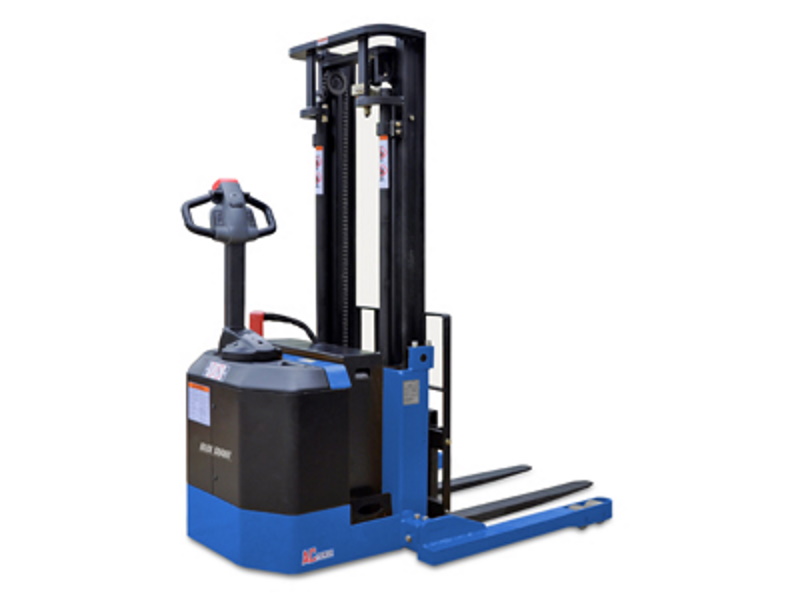

The BGS-30 Powered Walkie Stacker is technologically advanced but user-friendly. Built-in productivity enhancements, superior AC power, and a short turning radius for crowded facilities all ensure efficient performance during the most demanding warehouse applications.

CAPACITY

• 3,000 lb (1,364 kg)

LIFT HEIGHTS

• 104" (2,641 mm)

• 126" (3,200 mm)

• 157" (3,988 mm)

• 177" (4,496 mm)

PERFORMANCE

• 24V AC drive motor

• 24V ZAPI programmable travel controller supports simple and precise truck positioning

• Creep speed control allows for easier maneuvering at low speeds in tight places

• Travel speed remains constant relative to throttle position regardless of the load

• Regenerative braking kicks in when the forks are 12" (305 mm) above height

• Travel speed: 3.4mph (unloaded) and 3.1mph (under load)

ERGONOMICS

• Travel, lift, lower, and tilt functions are located in the ergonomic operator handle, which can be operated with either hand

• Hand grips fit the operator's hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

• Bolt-on high-visibility mast

• Fork size: 42" (1,067 mm) standard

• 3" (76 mm) adjustable straddle legs support easy positioning in racked aisles

• 224 AH battery package (4-6 volt, maintenance-free AGM batteries), complete with automatic 25AMP / 110VAC plug-in internal charger

• I-beam construction

• Heavy-duty two-piece head cover protects major components from impact damage
