2023 Blue Giant BGL-33-104

2023 Blue Giant BGL-33-104

BGL-33

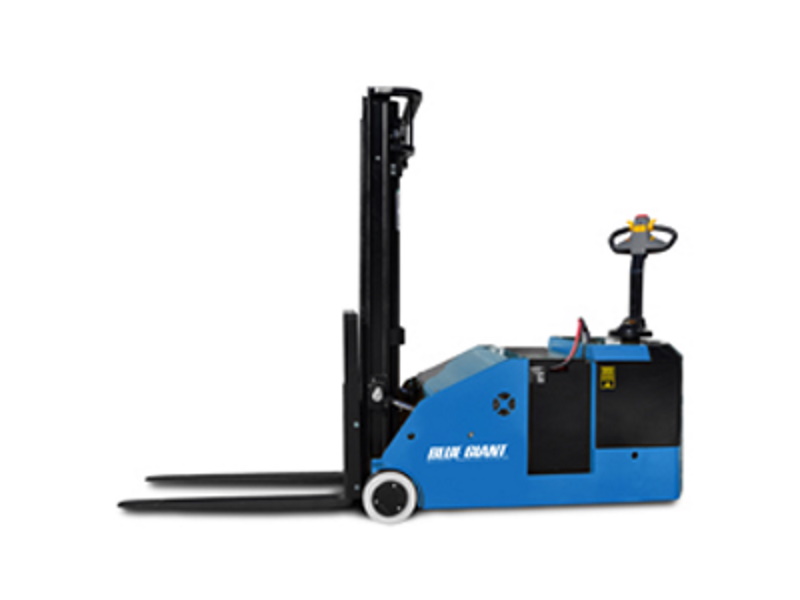

The BGL-33 Walkie Counterbalanced Stacker stacks and transports palletized loads that straddle stackers or reach trucks cannot carry and position as efficiently. A power steering system results in easy and ergonomic vehicle control.

CAPACITY

• 3,300 lb (1,497 kg)

LIFT HEIGHTS

• 104" (2,642 mm)

• 128" (3,251 mm)

• 157" (3,988 mm)

PERFORMANCE

• AC drive motor delivers steady acceleration and travel speeds

• 24V ZAPI travel controller supports simple and precise truck positioning

• Travel speed is reduced when forks are 12" (305 mm) above height

• Neutral braking resists rollback on ramps

• Creep speed control allows for easier maneuvering at low speeds in tight places

• Travel speed: 3.41mph (unloaded) and 3.1mph (under load)

ERGONOMICS

• Travel, lift, lower, and tilt functions are located in the ergonomic operator handle, which can be operated with either hand

• Hand grips fit the operator's hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

• 24" (610 mm) load center

• Fork size: 42" (1,067 mm) standard

• 35" (889 mm) tall load backrest

• High visibility I-beam mast
