2023 Blue Giant BGL-22-157

2023 Blue Giant  BGL-22-157

BGL-22

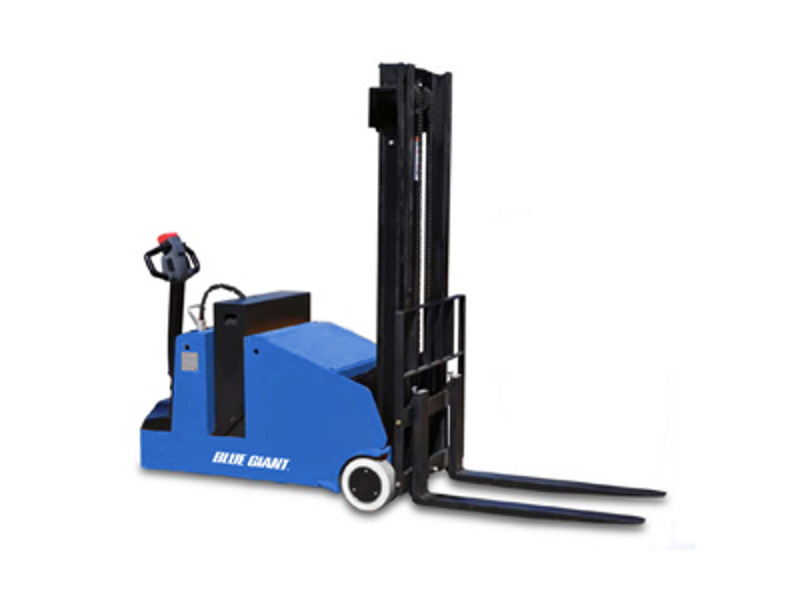

The BGL-22 Walkie Counterbalanced Stacker is a cost-effective solution for the stacking and transportation of palletized loads that a straddle stacker or reach truck cannot handle as efficiently.

CAPACITY

• 2,200 lb (1,000 kg)

LIFT HEIGHTS

• 104" (2,642 mm)

• 128" (3,251 mm)

• 157" (3,988 mm)

PERFORMANCE

• AC drive motor delivers steady acceleration and travel speeds

• 24V ZAPI travel controller supports simple and precise truck positioning

• Travel speed is reduced when forks are 12" (305 mm) above height

• Neutral braking resists rollback on ramps

• Creep speed control allows for easier maneuvering at low speeds in tight places

• Travel speed: 3.41mph (unloaded) and 3.1mph (under load)

ERGONOMICS

• Travel, lift, lower, and tilt functions are located in the ergonomic operator handle, which can be operated with either hand

• Hand grips fit the operator's hand comfortably, reducing fatigue

STRUCTURAL INTEGRITY

• 24" (610 mm) load center

• Fork size: 42" (1,067 mm) standard

• Premium AGM battery pack with integral 110V charger

• 35" (889 mm) tall load backrest

• High visibility I-beam mast
