ATC Toy Hauler Trailers

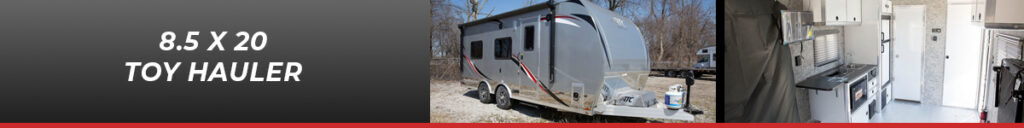

Trailer Name: 8.5′ x 20′
Overall Length: 25′
Overall Width:8’6″
Overall Height with A/C: 10’4″
Interior Height: 7′
Deck Height: 23″
Rear Opening Width: 90″
Rear Opening Height: 83″
Tongue Length to Center of Ball: 46″
Width Between Wheel Wells: 83″
Axle Type: Torsion
Axle Quantity: Tandem
GVWR: 7,700 lbs
Brakes: Electric
Tire Size: 225/75R15
Tire Load Range: D
Hitch Height to Top of Ball: 22″
Hitch Ball Size: 2-5/16″
Floor Studs: 24″ on center
Wall Studs: 16″ on center
Ceiling Studs: 16″ on center
Estimated Base Model Weight: 4,060 lbs
Estimated Tongue Weight with Gen: 950 lbs
Estimated Tongue Weight without Gen: 670 lbs

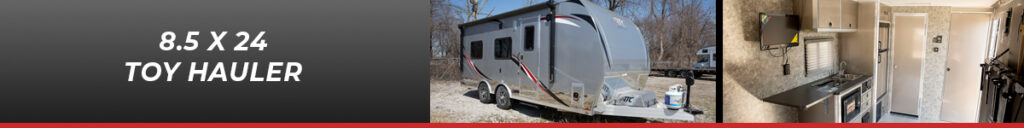

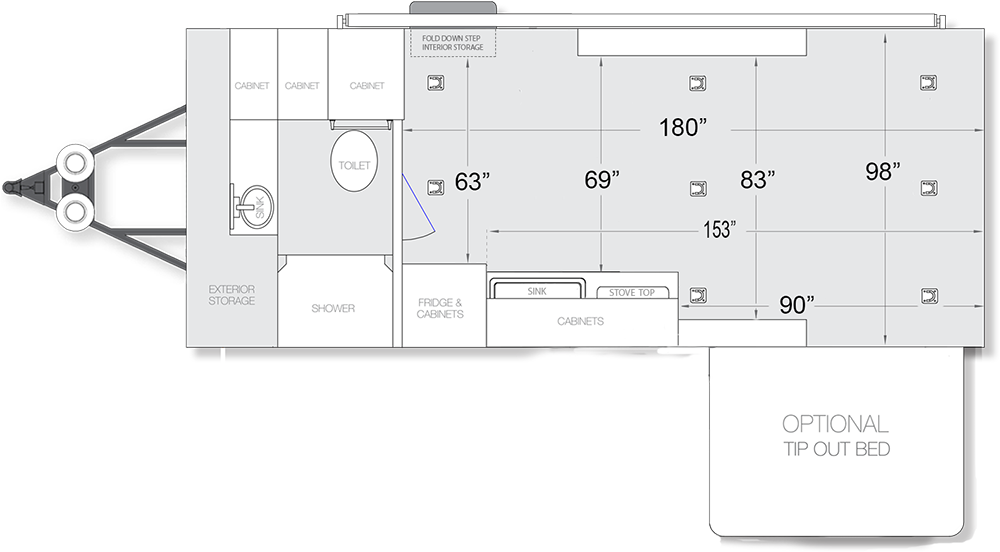

Trailer Name: 8.5′ x 24′
Overall Length: 29′
Overall Width:8’6″
Overall Height with A/C: 10’4″
Interior Height: 7′
Deck Height: 23″
Rear Opening Width: 90″
Rear Opening Height: 83″
Tongue Length to Center of Ball: 46″
Width Between Wheel Wells: 83″
Axle Type: Torsion
Axle Quantity: Tandem
GVWR: 11,440 lbs
Brakes: Electric
Tire Size: 225/75R15
Tire Load Range: D
Hitch Height to Top of Ball: 22″
Hitch Ball Size: 2-5/16″
Floor Studs: 24″ on center
Wall Studs: 16″ on center
Ceiling Studs: 16″ on center
Estimated Base Model Weight: 4,375 lbs
Estimated Tongue Weight with Gen: 914 lbs
Estimated Tongue Weight without Gen: 625 lbs

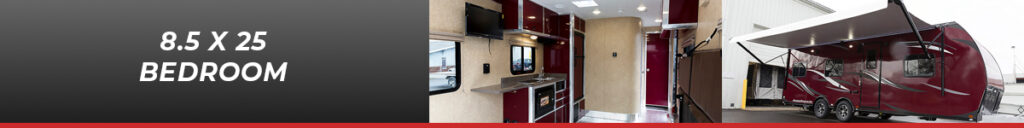

Trailer Name: 8.5′ x 25′ Bedroom
Overall Length: 30′
Overall Width:8’6″
Overall Height with A/C: 10’4″
Interior Height: 7′
Deck Height: 23″
Rear Opening Width: 90″
Rear Opening Height: 83″
Tongue Length to Center of Ball: 46″
Width Between Wheel Wells: 83″
Axle Type: Torsion
Axle Quantity: Tandem
GVWR: 11,440 lbs
Brakes: Electric
Tire Size: 225/75R15
Tire Load Range: D
Hitch Height to Top of Ball: 22″
Hitch Ball Size: 2-5/16″
Floor Studs: 12″ on center
Wall Studs: 16″ on center
Ceiling Studs: 16″ on center
Estimated Base Model Weight: 5,000 lbs
Estimated Tongue Weight with Gen: 1,132 lbs
Estimated Tongue Weight without Gen: 776 lbs

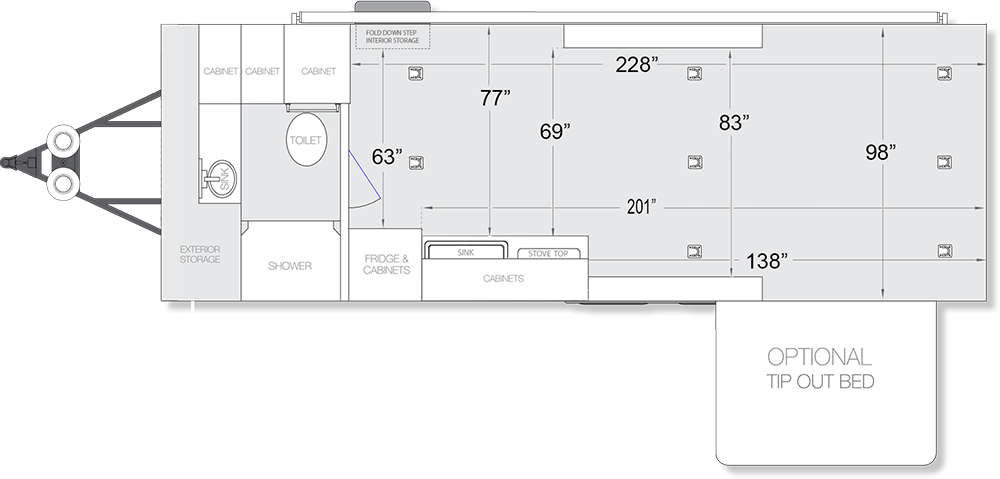

Trailer Name: 8.5′ x 28′
Overall Length: 33′
Overall Width:8’6″
Overall Height with A/C: 10’4″
Interior Height: 7′
Deck Height: 23″
Rear Opening Width: 90″
Rear Opening Height: 83″
Tongue Length to Center of Ball: 46″
Width Between Wheel Wells: 83″
Axle Type: Torsion
Axle Quantity: Tandem
GVWR: 11,440 lbs
Brakes: Electric
Tire Size: 225/75R15
Tire Load Range: D
Hitch Height to Top of Ball: 24″
Hitch Ball Size: 2-5/16″
Floor Studs: 16″ on center
Wall Studs: 16″ on center
Ceiling Studs: 16″ on center
Estimated Base Model Weight: 4,810 lbs
Estimated Tongue Weight with Gen: 1,174 lbs
Estimated Tongue Weight without Gen: 798 lbs

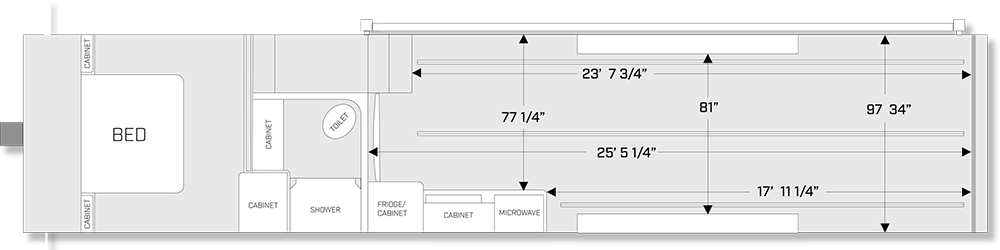

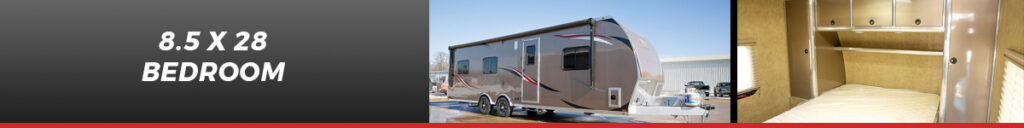

Trailer Name: 8.5′ x 28′ Bedroom
Overall Length: 33′
Overall Width:8’6″
Overall Height with A/C: 10’4″
Interior Height: 7′
Deck Height: 23″
Rear Opening Width: 90″
Rear Opening Height: 83″
Tongue Length to Center of Ball: 46″
Width Between Wheel Wells: 83″
Axle Type: Torsion
Axle Quantity: Tandem
GVWR: 11,440 lbs
Brakes: Electric
Tire Size: 225/75R15
Tire Load Range: D
Hitch Height to Top of Ball: 24″
Hitch Ball Size: 2-5/16″
Floor Studs: 12″ on center
Wall Studs: 16″ on center
Ceiling Studs: 16″ on center
Estimated Base Model Weight: 5,445 lbs
Estimated Tongue Weight with Gen: 985 lbs
Estimated Tongue Weight without Gen: 800 lbs
Add Your Heading Text Here
Standard Features
FRAME
• FULL PERIMETER ALUMINUM FRAME
• (2) AXLES, TORSION, EZ LUBE, W/ BRAKES
• 5200# AXLES (8.5×24, 25 & 28 models)
• 3500# AXLES (7X20, 24 & 8.5X20 models)
• 2000# SIDE WIND JACK
• REAR SCISSOR JACKs/5000# EACH (2 pair-8.5X28)
• COUPLER – 2-5/16″ – POWDER COATED GREY
• FENDERS – ALUMINUM
• EXTRUDED ALUMINUM FLOOR
• RECESSED FLOOR D-RINGS (5000# CAPACITY)
INTERIOR
• 7” INTERIOR HEIGHT
• AZDEL DECORATIVE WALL BOARD
• AZDEL WHITE VINYL CEILING
• 1″ E.P.S. INSULATED WALLS R-3
• FIBERGLASS BATTEN INSULATION FOR CEILING R-11
• 6″ ATP INTERIOR KICKPLATE
• BLINDS
• (2) FIRE EXTINGUISHERS – 2.5# ABC
• WARDROBE (n/a on 6’ wide)
EXTERIOR
• SCREWLESS EXTERIOR
• .040 ALUMINUM
• ONE PIECE ALUMINUM ROOF
• RADIUS FRONT WALL WITH 2 EXTERIOR STORAGE DOORS
• ATP STONEGUARD
• STAINLESS STEEL REAR CORNERS
• (2) 12V ROOF VENTS WITH SWITCH
• SALEM TWO-WAY VENT SYSTEM
• POWER AWNING
• GRAB HANDLE FOR SIDE DOOR
• GRAB HANDLE FOR REAR DOOR
• FOLD OUT ADJUSTABLE STEP
• RVIA CERTIFICATION SEAL
ELECTRICAL
• 7-WAY PLUG
• 50 AMP DISTRIBUTION PANEL – 120V OUTPUT W/ 12V CONVERTER
• 50 AMP SHORE CORD & MOTORBASE – BLACK
• MANUAL POWER CUT-OFF SWTICH – 12V
• PREWIRED VENTED BATTERY COMPARTMENT
• 120V & 12V POWER OUTLET – INTERIOR & EXTERIOR
• (2) USB POWER OUTLETS
• COAX CABLE OUTLET – EXTERIOR & INTERIOR
• TV PREP PACKAGE
• HD DIGITAL TV ANTENNA
• LED INTERIOR LIGHTING
• SYSTEM CONTROL PANEL W/ TANK & BATTERY MONITOR
• LED CLEARANCE & BRAKE LIGHTS
• REINFORCE AND WIRE FOR FUTURE A/C
• CO DETECTOR
• SMOKE DETECTOR
• LP DETECTOR
PLUMBING
• 100 GALLON FRESH WATER TANK (51 GALLON ON 6′ WIDE)
• 45 GALLON GRAY WATER TANK
• 45 GALLON BLACK WATER TANK
• (2) 20# LP TANKS WITH BLACK TANK COVER
• 6 GALLON DSI LP GAS/ELECTRIC WATER HEATER
• 25,000 BTU DUCTED LP FURNACE
• 12V WATER PUMP WITH WINTERIZING TAP
• CITY WATER HOOK UP & GRAVITY FILL
• 10′ SEWER HOSE WITH STORAGE TUBE
DOORS & WINDOWS
• 28″ DOOR WITH SCREEN DOOR/TINTED WINDOW
• LIGHTWEIGHT CABLELESS REAR RAMP DOOR W/ SPRAY-ON BED LINER
• (2) 24″ X 22″ TOP HINGED BAGGAGE DOORS – ATP W/ GAS SHOCK
• (1) 30″ X 20″ EGRESS WINDOW WITH SLIDER
• (2) 42″ X 36″ SLIDER WINDOW
• (1) 72″ X 28″ SLIDER WINDOW
KITCHEN
• 27″ FARMHOUSE SINGLE BOWL STAINLESS STEEL SINK
• BRUSHED NICKEL FAUCET WITH PULL OUT SPRAYER
• 6.0 CU FT 2-WAY REFRIGERATOR(120V/LP)
• LOWER ALUMINUM CABINET WITH SOLID SURFACE COUNTER TOPS
• UPPER ALUMINUM CABINET
• ALUMINUM REFRIGERATOR CABINET
• 2-BURNER FLUSH MOUNT LP COOK TOP
BATHROOM
• ALUMINUM PARTITION WALL WITH 21″ DOOR – WELDED CONSTRUCTION
• TOWEL BAR, TP HOLDER, TOWEL HOOKS – BRUSHED NICKEL
• PORCELAIN RV STYLE TOILET
• 1 PIECE RECTANGULAR SHOWER WITH EXTEND-A-SHOWER & CURTAIN
• SINGLE LEVER SHOWER, SPRAYER, WATER SHUTOFF BUTTON
• UPPER ALUMINUM CABINET
• MIRROR
• SOLID SURFACE COUNTER TOP W/ STAINLESS STEEL SINK & BRUSH NICKEL FAUCET
• LINEN CLOSET
• CABINETS
TIRES/WHEELS
• ST225/75R15/LRE TIRES ON ALUMINUM WHEEL WITH SS LUG NUTS
• SPARE ST225/75R15/LRE TIRE ON GRAY WHEEL
• HIDE A SPARE – EZ ACCESS
FRONT BEDROOM FEATURES
• QUEEN BED WITH STORAGE
• PILLOW TOP MATTRESS
• BEDROOM CABINET PACKAGE
• 5′ SHELF

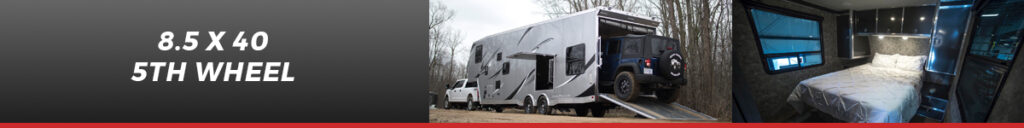

Trailer Name: 8.5′ x 40′ 5th Wheel
Overall Length: 41′ 3″
Overall Width:8’6″
Overall Height with A/C: 13′
Interior Height (angled ceiling): 8′ – 10′
Interior Bedroom Height: 6’2″
Deck Height: 27″
Rear Opening Width: 96″
Rear Opening Height: 90″
Clearance To Bottom of Bunk: 64″
Width Between Wheel Wells: 81″
Axle Type: Torsion
Axle Quantity: Triple
GVWR: 21,600 lbs
Brakes: Electric
Tire Size: ST 235/75R16LRE
Tire Load Range: E
Floor Studs: 16″ on center
Wall Studs: 16″ on center
Ceiling Studs: 16″ on center
Estimated Base Model Weight: 10,000 lbs
FRAME – 5TH WHEEL
• FULL PERIMETER ALUMINUM FRAME
• (3) AXLES, TORSION, EZ LUBE, W/ BRAKES
• 6000# AXLES
• JACKS – TWO POST – ELECTRIC – 21″ STROKE – 6.0K – FRONT
• REAR SCISSOR JACKS
• COUPLER – 5TH WHEEL
• FENDERS – ALUMINUM
• EXTRUDED ALUMINUM FLOOR
• RECESSED FLOOR D-RINGS (5000# CAPACITY)
INTERIOR – 5TH WHEEL
• 8′ MINIMUM INTERIOR HEIGHT (GARAGE AREA)
• AZDEL DECORATIVE WALL BOARD
• AZDEL WHITE VINYL CEILING
• 1″ E.P.S. INSULATED WALLS R-3
• FIBERGLASS BATTEN INSULATION FOR CEILING R-11
• 6″ ATP INTERIOR KICKPLATE
• ROLLER SHADES
• (2) FIRE EXTINGUISHERS – 2.5# ABC
EXTERIOR – 5TH WHEEL
• SCREWLESS EXTERIOR
• ONE PIECE ALUMINUM ROOF
• RADIUS FRONT WALL WITH 2 EXTERIOR STORAGE DOORS
• ATP STONEGUARD
• STAINLESS STEEL REAR CORNERS
• (3) 12V ROOF VENTS WITH SWITCH
• SALEM TWO-WAY VENT SYSTEM
• POWER AWNING WITH LED LIGHTING
• HAND RAIL FOR SIDE DOOR
• GRAB HANDLE FOR REAR DOOR
• FOLD OUT TRIPLE STEP
• RVIA CERTIFICATION SEAL
ELECTRICAL – 5TH WHEEL
• 7-WAY PLUG
• 50 AMP DISTRIBUTION PANEL – 120V OUTPUT W/ 12V CONVERTER
• 50 AMP SHORE CORD & MOTORBASE – BLACK
• MANUAL POWER CUT-OFF SWTICH – 12V
• PREWIRED VENTED BATTERY COMPARTMENT
• 120V & 12V POWER OUTLET – INTERIOR & EXTERIOR
• (3) USB CHARGING PORTS
• COAX CABLE OUTLET – EXTERIOR & INTERIOR
• TV PREP PACKAGE
• HD DIGITAL TV ANTENNA
• SYSTEM CONTROL PANEL W/ TANK & BATTERY MONITOR
• LED CLEARANCE & BRAKE LIGHTS
• CO DETECTOR
• SMOKE DETECTOR
• LP DETECTOR
PLUMBING – 5TH WHEEL
• (2) 100 GALLON FRESH WATER TANK
• 45 GALLON GRAY WATER TANK
• 45 GALLON BLACK WATER TANK
• (2) 30# LP TANKS
• 10 GALLON DSI LP GAS/ELECTRIC WATER HEATER
• 25,000 BTU DUCTED LP FURNACE
• 12V WATER PUMP WITH WINTERIZING TAP
• CITY WATER HOOK UP & GRAVITY FILL
• 10′ SEWER HOSE WITH STORAGE TUBE
DOORS & WINDOWS – 5TH WHEEL
• 28″ DOOR WITH SCREEN DOOR/TINTED WINDOW
• CABLELESS REAR RAMP DOOR W/ NON
• (2) TOP-HINGE BAGGAGE DOORS – ATP
• (2) EGRESS WINDOWS WITH SLIDER
• (4) SLIDER WINDOWS
KITCHEN – 5TH WHEEL
• FARMHOUSE SINGLE BOWL STAINLESS STEEL SINK
• BRUSHED NICKEL FAUCET WITH PULL OUT SPRAYER
• 8.0 CU FT 2-WAY REFRIGERATOR(120V/LP)
• LOWER ALUMINUM CABINET WITH SOLID SURFACE COUNTER TOPS
• UPPER ALUMINUM CABINET
• ALUMINUM REFRIGERATOR CABINET
• 2-BURNER FLUSH MOUNT LP COOK TOP
BATHROOM – 5TH WHEEL
• ALUMINUM PARTITION WALL WITH 24″ DOOR – WELDED CONSTRUCTION
• BRUSHED NICKEL-BATHROOM HARDWARE
• PORCELAIN RV STYLE TOILET
• 1 PIECE RECTANGULAR SHOWER WITH EXTEND-A-SHOWER & CURTAIN
• UPPER ALUMINUM CABINET
• MIRROR
• SOLID SURFACE COUNTER TOP W/ STAINLESS STEEL SINK & FAUCET
• LINEN CLOSET
• CABINETS
• VINYL FLOORING
TIRES/WHEELS – 5TH WHEEL
• ST235/75R16LRE
• SPARE ST235/75R16LRE
• HIDE A SPARE – EZ ACCESS
BEDROOM – 5TH WHEEL
• QUEEN BED WITH STORAGE
• PILLOW TOP MATTRESS
• BEDROOM CABINET PACKAGE
• CARPET BEDROOM AND DOWN STEPS
